Tablet Medyczny Rugged MCA-9

[+]Powiększ

Po szczegóły zadzwoń pod numer
801 000 167

Specyfikacja

Opis produktu	Tablet medyczny Ruggedbook model MCA9
Gwarancja	- 24 miesiące

Opis

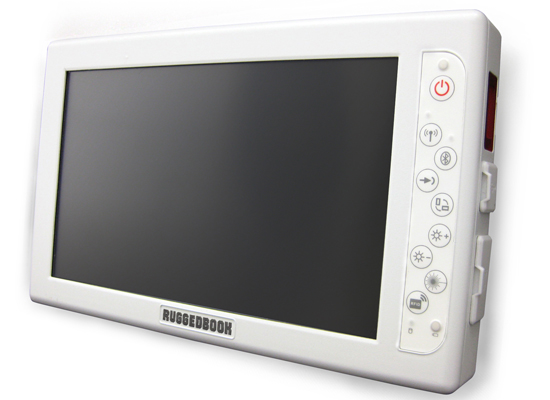

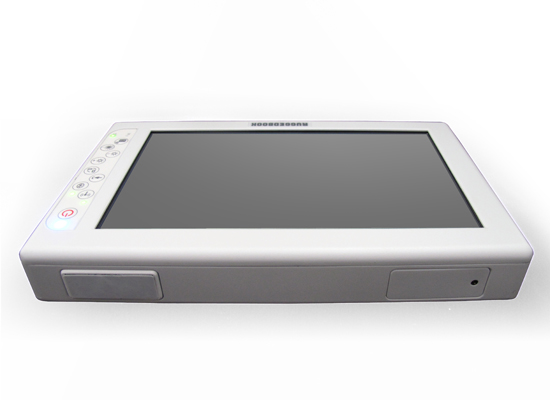

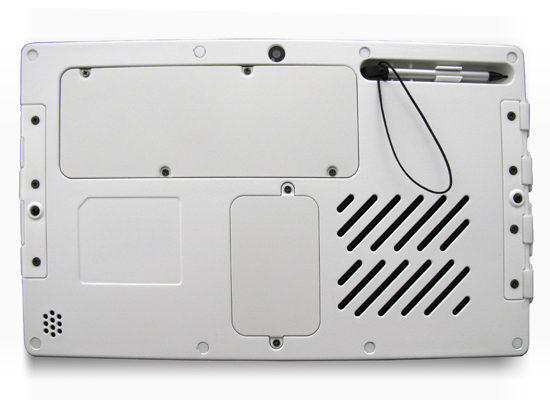

Rugged Tablet PC-MCA9

	Intel^® Atom Z530P 1.6GHz Processor, 512KB L2 Cache
	Intel^® US15WP system controller hub (SCH)
	Intel^® graphics media accelerator 500
	8.9" TFT LCD (WSVGA LED backlight), touch screen/Sunlight readable (optional)
	1GB RAM (Upgradable to 2GB Max.)
	16GB SSD+ 16GB SDHC
	WLAN 802.11 b/g/n
	Bluetooth 2.1 class ll+ EDR
	WWAN module (HSUPA/E-GPRS) (optional)
	2.0 Mega-Pixels camera
	1D Barcode scanner (optional:1D/2D barcode scanner)
	13.56 MHz RFID reader supports ISO/IEC 15693 & ISO 14443 A/B standard
	Fully rugged design, meet IP65 & MIL-STD-810G
	Mg-Al alloy Housing & Fan-less design
	Free drop over 3 feet still survive

Features:

Specifically designed for medical and clinical applications, Samwell”s compact, lightweight and silent MCA9 tablet visually fits right into healtcare settings. And the tough and well-sealed housing is easy to clean and holds up to clinical disinfectants and its rugged magnesium-aluminum construction can easily handle the occsional drop or spill.

Medical applications benefit from the MCA”s wide range of data capture, recording and transmission capabilities. A built-in camera can be used for documentation. The integrated 1D/2D scanner and 13.56 MHz RFID reader open new possibilities for accuracte and efficient patient identification, medication administration, medical history and tracking, and more. Small size, light weight and extensive integrated wireless connectivity allow medical personnel instant database access no matter where they are, assisiting optimal diagnostics and patient care.

The concept behind the MCA9 is to provide clinical and healthcare environments with a simple, efficient, multi-function mobile computing tool that enhances workflow, lowers transcription errors and helps in providing optimal patient care.


Specifications:

Processor	Intel^®Atom Z530P 1.6GHz Processor, 512KB L2 Cache

System Chipset	Intel^® US15WP system controller hub (SCH)

Graphic Display	Intel^® graphics media accelerator 500

LCD Panel	8.9”TFT LCD (WSVGA LED backlight) with 4 wires touch panel Optional: Sunlight readable

Memory	1GB RAM (upgradable to 2GB max.)

Storage	16GB SSD+ 16GB SDHC

Audio	1x Internal Speaker & 1x Internal Microphone

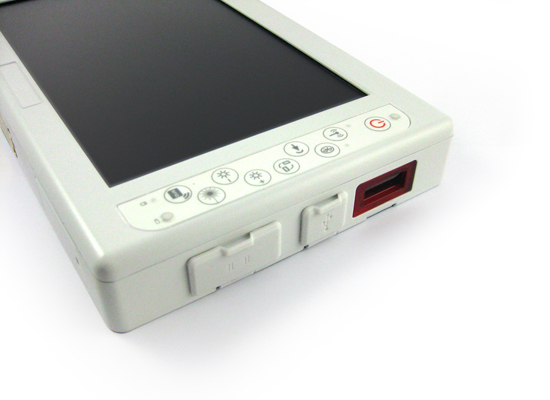

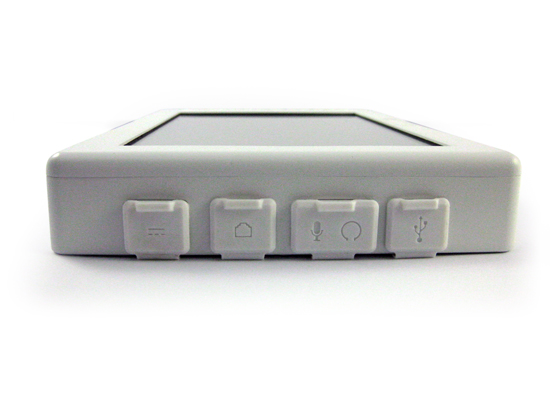

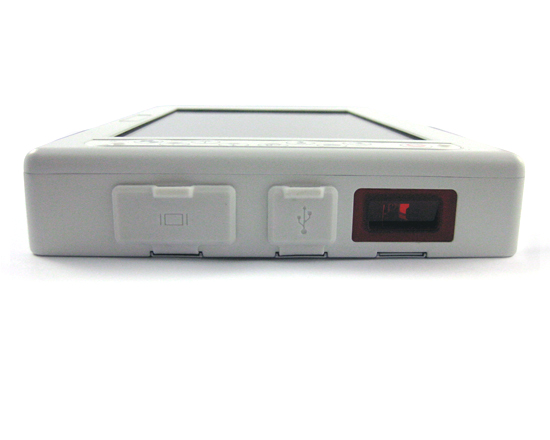

I/O Port	2x USB 2.0; 1x VGA; 1x RJ-45; 1x Earphone; 1x MIC; 1x DC-in

Expansion slot	1x SD/MMC card slot, 1x SIM card slot

Camera	1x 2.0 Mega-Pixels camera (optional :5.0 Mega-Pixels camera)

Barcode scanner	1D or 1D/2D barcode scanner (optional)

RFID	13.56 MHz RFID reader supports ISO/IEC 15693 & ISO 14443 A/B standard

Connectivity/ communication	10/100/1000 Ethernet LAN 802.11 b/g/n WLAN Bluetooth 2.1 class II+ DR WWAN module(HSUPA/E-GPRS) (optional)

Power System	Adapter Input AC: 100V-240V,50Hz-60Hz; Output: DC 12V/50W

Battery	4 cells 2S2P 5200 mAh Li-Ion battery. 6 max. hours run-down life

Button Key	Power button ; Screen Rotation, button (Ctrl+ Alt+Del ); WLAN; Bluetooth Switch; Barcode scanner; RFID; Brightness up; Brightness down

Operating System	Windows XP Tablet PC edition, Windows 7 Professional edition

Accessory	1 x Service DVD, 1x power cord, 1x Stylus, 1x adapter

Docking Station	3 x USB, 1 x RS232, 1 x RJ-45, 1 x DC-in

Operating Temperature	Operating:0°C to+60°C; Storage: -20°C to+85°C Cold boot (battery): 0°C @75? charge,

Dimension & Weight	252x153x33mm, >1.1 kg

Reliability	IP65, MIL-STD-810G

EMI/ Safety	FCC, CE, cUL (EN 60601-1 & EN60601-2)
